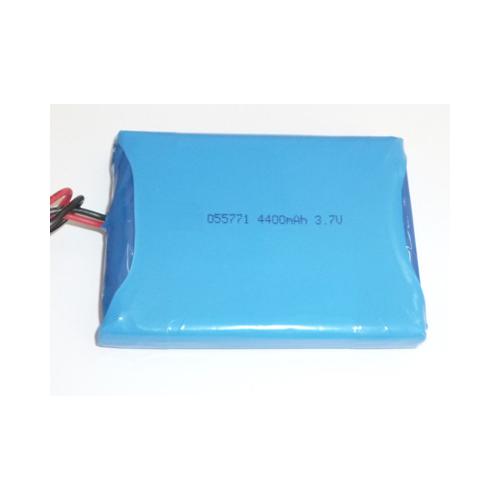

3.7V聚合物电池|055771聚合物锂电池：
|
1 Model/型号：XL055771*1S2P
|
No.
|
Items/项目
|
Specifications/规格
|
Remark
备注
|
|
1
|
Capacity for assembled cell discharging by 0.2C
电芯组装后0.2C标准放电方式的容量
|
≥4340mAh
|
Standard discharging method
标准放电方式
|
|
2
|
Battery Voltage
电池电压
|
≥3.7V
|
Delivery voltage, Within 10 days from Factory
交货电压，在出厂10天内
|
|
3
|
Standard charge condition
标准充电条件
|
Charge with 0.5C constant current and4.2V constant voltage, charge to4.2V,continue charging till current decline to ≤0.01C
充电电流用0.5C恒流,4.2V恒压充至电流≤0.01C
|
Charge volage:4.2V±0.02V
Charge current:0.5C
充电电压：4.2V±0.02V
充电电流：0.5C
|
|
4
|
Standard discharging method
标准放电方式
|
0.2C constant current discharge to 3.0V,
|
0.2C恒流放电至3.0V
|
|
5
|
Assemblage Maximum charge current
组装后最大充电持续电流
|
4400mA
|
For continuous charging mod
连续充电模式
|
|
6
|
Assemblage Maximum discharge current
组装后最大放电持续电流
|
4400mA
|
For continuous discharge mod
连续放电模式
|
|
7
|
Internal Impedance
内阻
|
Assemblage Impedance
装配后内阻≤100 mΩ
|
Measure two sides of the drawing line after assembling.
装配后测试电池引线两端
|
2 Cell Specification/电芯产品规格
|
No.
|
Items/项目
|
Specifications/规格
|
Remark
备注
|
|
1
|
Nominal Capacity
标称容量
|
2200mAh
|
0.2C Standard discharge
0.2C 标准放电
|
|
2
|
Minimum Capacity
最小容量
|
2170mAh
|
|
3
|
Nominal Voltage
标称电压
|
3.7V
|
Mean Operation Voltage
即工作电压
|
|
4
|
Delivery voltage
交货电压
|
3.7~3.9V
|
Within 10 days from Factory
在出厂10天内
|
|
5
|
Charge Voltage
充电电压
|
4.2V±0.03V
|
By standard charge method
标准充电方式
|
|
6
|
Standard charging method
标准充电方式
|
0.5C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C
|
0.5C恒流4.2V恒压充至电流≤0.01C
,时间4.5h(供参考)
|
|
7
|
Charge current
充电电流
|
0.5C
|
1100mA
|
Standard charge, charge time:4.5h(Ref)
标准充电，时间4.5h(供参考)
|
|
1.0C
|
2200mA
|
Rapid Charge, charge time:3.0h(Ref)
快速充电，时间3h(供参考)
|
|
8
|
Standard discharging method
标准放电方式
|
0.2C constant current discharge to 3.0V,
|
0.2C恒流放电至3.0V
|
|
9
|
Cell Internal Impedance
单电芯内阻
|
≤50mΩ
|
Internal resistance measured at AC 1KHZafter 50% charge
半电态下用交流法测量内阻
|
|
|
|
|
|
|
|
|
10
|
Maximum charge current
最大充电持续电流
|
1C
|
2200mA
|
For continuous charging mod
连续充电模式
|
|
11
|
Maximum discharge current
最大放电持续电流
|
1C
|
2200mA
|
For continuous discharge mod
连续放电模式
|
|
12
|
Operation Temperature and relative humidity Range
工作温度和湿度范围
|
Charge/充电
|
0~45℃
60±25%R.H.
|
Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
低温充电效率会下降，会影响电池使用寿命
|
|
Discharge/放电
|
-10~60℃
60±25%R.H.
|
|
13
|
Storage temperature for a long time
长时间储存温度
|
-20~25℃
60±25%R.H.
|
Do not storage exceed half year. Must charge once when storage for half year. Must charge the battery which with protect circuit when storage for three months.
不可超过半年,达到半年须充电一次
带保护板电池3个月充电一次
|
|
3.7V聚合物锂电池其他
· 符合国家对电池的相关标准和要求
· 电池成品出厂全部经过校正和测试.可以直接正常使用
· 可以根据不同的数据，参数，要求设计出不同的产品，满足客户的要求 |
